One NEXEDGE radio, multiple protocols*: the NX-5700HB (110 W) / NX-5800HB
(100W) mobile transceivers support NXDN and P25 (Phase 1 & 2) digital protocols,
plus FM analog for mixed operation. This high-power RF deck – equipped with
Bluetooth®, GPS and a memory card slot – requires one of several optional remote
control heads, all of which offer an intuitive controls for easy operation. The versatile
NX-5700HB/5800HB can be combined with other RF decks and multiple remote
control heads to create a radio system that is tailored to your interoperability
requirements. .
One Radio with Multi-Protocol Support

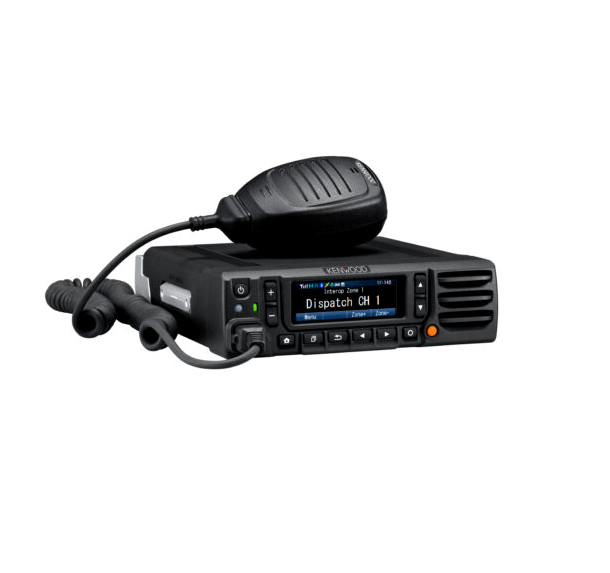

NX-5700HB/5800HB NEXEDGE VHF/UHF DIGITAL TRANSCEIVER
Kenwood NX-5700H/5800H Mobile
Description
NX-5700HBF (110W, 136-174 MHz) RF Deck Only, NXDN Conv & P25 Conv(Remote Control Head, Microphone, Bracket, DC Cable not included
NX-5800HBF (100W, 450-520 MHz) RF Deck Only, NXDN Conv & P25 Conv(Remote Control Head, Microphone, Bracket, DC Cable not included)
NX-5800HBF2 (100W, 380-470 MHz) RF Deck Only, NXDN Conv & P25 Conv(Remote Control Head, Microphone, Bracket, DC Cable not included)
GENERAL FEATURES
110 W ( 136 174 MHz) Model
1 0 0 W ( 380 450 , 450 520 MHz) Model
1024 CH GID / 128 Zones
Multi Digital Operation in NXDN/P 25
Support NX 5000 Remote Control Head Options
Multi RF Deck Configuration Available
(Lowband, VHF,380 470 , 450 520 , 7 800
Built in Micro USB A B Interface
Horn Alert / Public Address
Built in GPS Receiver
Built in Bluetooth® Module
Built in 56 bit DES Encryption
4 keys programmable by KPG D 1 N)
Optional 256 bit AES Encryption
12 Watt Audio Output
DB 25 & Molex 9 pin Accessory Connector
Active Noise Reduction (ANR)
KPG D 1 N Windows ® FPU
Flash Firmware Upgrading
MIL STD 810 C/D/E/F/G
